ZRM-306S 顆粒狀干燥過濾器
更新：14-10-29 16:24 點擊：
產品介紹
產品簡介 Product Introduction
ZRM系列顆粒狀干燥過濾器采用高品質的壓縮小 顆粒球形干燥劑燒結成的模塊，與高密度網布結合，達到干燥過濾的作用，能有效過濾系統中殘留的水 份和雜物。
ZRM series solid core liquid line filter drier using a high quality compression of small spherical particles sintered desiccant module, combined with high-density filter cloth ,to dry and the role of filter, that can effectively filter system residues of water and debris.

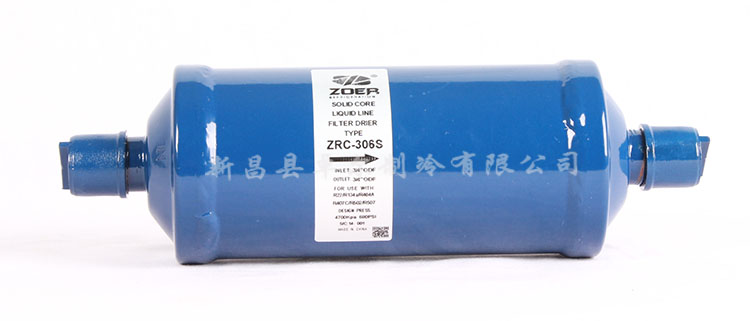

產品展示 Product Display
產品特點 Product Fedture
●高溶解水份和去除酸的能力強
High moisture dissolution and acid removal ability
●干燥和過濾相結合
Drying and filtering effect of combining
●高強度小顆粒球形干燥劑燒結成的模塊，使得運行時無震動和摩擦，減少干燥劑的磨損
Small spherical particles of high strength sintered desiccant module, to make run-time without shock and friction , reduce wear of the desiccant
●接頭形式有焊接式或螺紋口式
ODF and SAE connections are available
產品屬性 Product Attribute
|
產品說明 Specifications |
|||||
|
|
|||||
|
高溶解水分和去除酸的能力強 |
|||||
|
|
|||||
|
命名方式 |
例如：ZRM-306S |
||||
|
Nomenclature：For Example ZRM-306S |
|||||
|
ZRM |
30
|
6 |
S |
||
|
Molecular Series |
Unit Size |
Connection |
S=ODF Connections(omit for SAE) |
||
|
|
|||||
|
尺寸數據 |
Dimensional Data |
||||
|
|
|||||
|
型號 Description |
接管尺寸 Connection Size |
外形尺寸Dimensions
|
|||
|
焊接口 ODF
|
螺紋口 SAE
|
A
|
B
|
C
|
|
|
ZRM-306S |
3/4 |
|
239 |
185
|
76
|
