產品簡介  Product Introduction


         ZRM系列顆粒狀干燥過濾器采用高品質的壓縮小 顆粒球形干燥劑燒結成的模塊，與高密度網布結合，達到干燥過濾的作用，能有效過濾系統中殘留的水 份和雜物。

         ZRM  series solid core liquid line filter drier using a high quality compression of small spherical particles sintered desiccant module, combined with high-density filter cloth ,to dry and the role of filter, that can effectively filter system residues of water and debris.

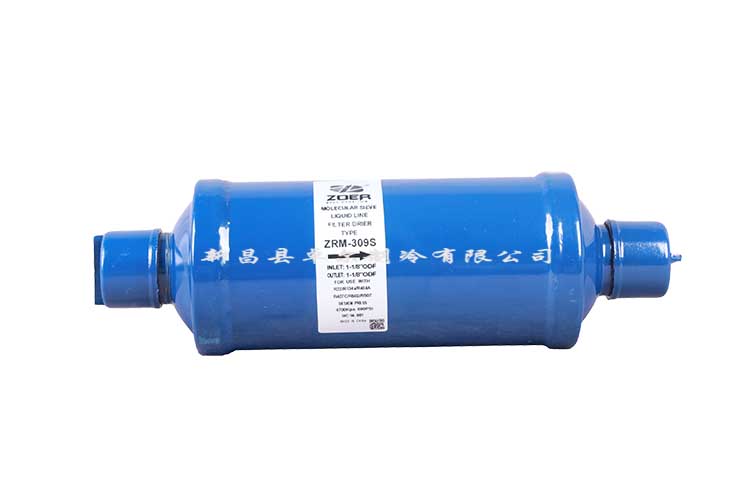

產品展示  Product Display





產品特點  Product Fedture

●高溶解水份和去除酸的能力強

 High moisture dissolution and acid removal ability

●干燥和過濾相結合

Drying and filtering effect of combining

●高強度小顆粒球形干燥劑燒結成的模塊，使得運行時無震動和摩擦，減少干燥劑的磨損

Small spherical particles of high strength sintered desiccant module, to make run-time without shock and friction , reduce wear of the desiccant

●接頭形式有焊接式或螺紋口式

ODF and SAE connections are available



產品屬性  Product Attribute

產品說明 Specifications
高溶解水分和去除酸的能力強 50um的過濾網可在最小壓力降下保持高效過濾 接頭形式有焊接口和螺紋口 防腐漆保證500小時鹽霧噴淋試驗 最小破壞壓力：17.5Mpa
命名方式	例如：ZRM-309S
	Nomenclature：For Example ZRM-309S
	ZRM		30	9	S
	Molecular Series		Unit Size (in cu. in. )	Connection Size（in1-1/8" ）	S=ODF Connections(omit for SAE)
尺寸數據	Dimensional Data
型號 Description	接管尺寸 Connection Size		外形尺寸Dimensions
	焊接口 ODF	螺紋口 SAE	A	B	C
ZRM-309S	1-1/8		245	185	89
