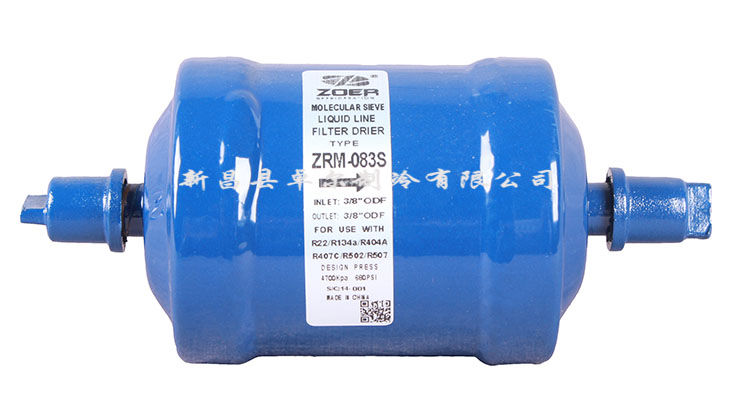

ZRM-083S 顆粒狀干燥過濾器
更新：14-10-29 15:50 點擊：
產品介紹
產品簡介 Product Introduction
ZRM系列顆粒狀干燥過濾器采用高品質的壓縮小顆粒球形干燥劑燒結成的模塊，與高密度網布結合，達到干燥過濾的作用，能有效過濾系統中殘留的水份和雜物。
ZRM series solid core liquid line filter drier using a high quality compression of small spherical particles sintered desiccant module, combined with high-density filter cloth ,to dry and the role of filter, that can effectively filter system residues of water and debris.
產品展示 Product Display
產品特點 Product Fedture
●高溶解水份和去除酸的能力強
High moisture dissolution and acid removal ability
●干燥和過濾相結合
Drying and filtering effect of combining
●高強度小顆粒球形干燥劑燒結成的模塊，使得運行時無震動和摩擦，減少干燥劑的磨損
Small spherical particles of high strength sintered desiccant module, to make run-time without shock and friction , reduce wear of the desiccant
●接頭形式有焊接式或螺紋口式
ODF and SAE connections are available
產品屬性 Product Attribute
|
產品說明 Specifications |
|||||
|
|
|||||
|
高溶解水分和去除酸的能力強 |
|||||
|
|
|||||
|
命名方式 |
例如：ZRM-083S |
||||
|
Nomenclature：For Example ZRM-083S |
|||||
|
ZRM |
08
|
3 |
S |
||
|
Molecular Series |
Unit Size |
Connection |
S=ODF Connections(omit for SAE) |
||
|
|
|||||
|
尺寸數據 |
Dimensional Data |
||||
|
|
|||||
|
型號 Description |
接管尺寸 Connection Size |
外形尺寸Dimensions
|
|||
|
焊接口 ODF
|
螺紋口 SAE
|
A
|
B
|
C
|
|
|
ZRM-083S |
3/8 |
|
146 |
98
|
63.5
|
